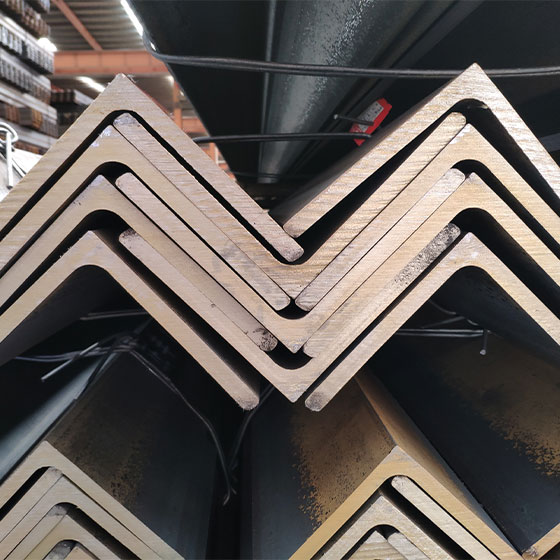

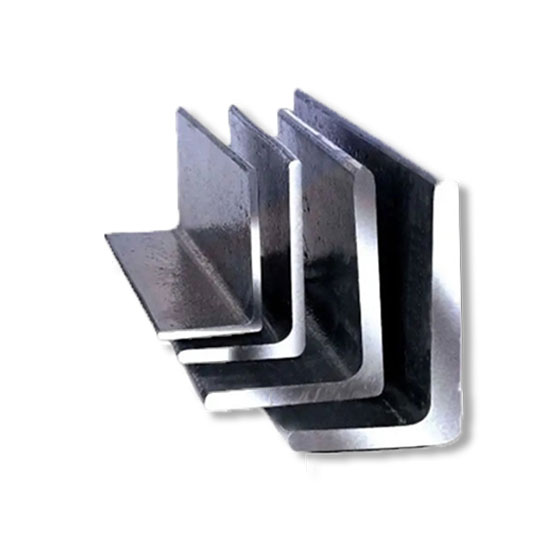

Angle bar (also known as an angle iron or L-bracket) is an L-shaped metal bar with two legs that form a 90 degrees angle. It is widely used in construction, framing, and DIY fabrication to provide structural support, corner bracing, or a rigid frame.Sino Sea Steel stocks hundreds of sizes of steel angle that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size in small or large quantity at wholesale prices.
Angle bar (also known as an angle iron or L-bracket) is an L-shaped metal bar with two legs that form a 90 degrees angle. It is widely used in construction, framing, and DIY fabrication to provide structural support, corner bracing, or a rigid frame.
Sino Sea Steel stocks hundreds of sizes of steel angle that you can buy online in ready to ship precut or mill lengths or you can order just what you need custom Cut to Size in small or large quantity at wholesale prices.
EQUAL ANGLE BAR | |||||||
SIZE(MM) | KG/M | SIZE(MM) | KG/M | SIZE(MM) | KG/M | SIZE(MM) | KG/M |
20*20*2.5 | 0.754 | 50*50*5 | 3.77 | 90*90*8 | 10.946 | 130*130*13 | 25.4 |
20*20*3 | 0.877 | 50*50*6 | 4.465 | 90*90*10 | 13.476 | 130*130*15 | 28.8 |
20*20*4 | 1.145 | 60*60*4 | 3.643 | 90*90*12 | 15.94 | 140*140*10 | 21.488 |
25*25*2.5 | 0.95 | 60*60*5 | 4.514 | 100*100*6 | 9.366 | 140*140*12 | 25.522 |
25*25*2.7 | 1.02 | 60*60*6 | 5.42 | 100*100*7 | 10.83 | 140*140*14 | 29.49 |
25*25*3 | 1.124 | 60*60*8 | 7.09 | 100*100*8 | 12.276 | 140*140*16 | 33.393 |
25*25*4 | 1.459 | 63*63*4 | 3.097 | 100*100*9 | 13.6 | 150*150*10 | 22.765 |
25*25*5 | 1.778 | 63*63*5 | 4.822 | 100*100*10 | 15.12 | 150*150*11 | 25.15 |
25*25*6 | 2.08 | 63*63*6 | 5.721 | 100*100*12 | 17.898 | 150*150*12 | 27.13 |
30*30*2.3 | 1.074 | 63*63*8 | 7.469 | 100*100*13 | 19.1 | 150*150*13 | 29.49 |
30*30*2.5 | 1.16 | 63*63*10 | 9.151 | 100*100*14 | 20.611 | 150*150*14 | 31.64 |
30*30*3 | 1.373 | 65*65*4 | 4.02 | 100*100*16 | 23.257 | 150*150*15 | 33.6 |
30*30*4 | 1.786 | 65*65*5 | 4.907 | 110*110*7 | 11.928 | 150*150*16 | 35.87 |
30*30*5 | 2.184 | 65*65*6 | 5.841 | 110*110*8 | 13.532 | 150*150*18 | 40.04 |
30*30*6 | 2.564 | 65*65*8 | 7.662 | 110*110*9 | 15.02 | 150*150*19 | 41.9 |
36*36*3 | 1.656 | 70*70*4 | 4.372 | 110*110*10 | 16.69 | 160*160*10 | 24.729 |
36*36*4 | 2.163 | 70*70*5 | 5.397 | 110*110*12 | 19.782 | 160*160*12 | 29.391 |
36*36*5 | 2.654 | 70*70*6 | 6.406 | 110*110*14 | 22.809 | 160*160*14 | 33.987 |
38*38*2.3 | 1.371 | 70*70*7 | 7.398 | 120*120*6 | 11.1 | 160*160*16 | 38.518 |
38*38*2.5 | 1.482 | 70*70*8 | 8.373 | 120*120*7 | 12.9 | 175*175*12 | 31.8 |
38*38*2.7 | 1.593 | 70*70*9 | 9.34 | 120*120*8 | 14.57 | 175*175*15 | 39.4 |
38*38*3 | 1.758 | 75*75*5 | 5.818 | 120*120*9 | 16.5 | 180*180*12 | 33.159 |
38*38*3.7 | 2.137 | 75*75*6 | 6.905 | 120*120*10 | 18.055 | 180*180*14 | 38.383 |
38*38*3.8 | 2.19 | 75*75*7 | 7.976 | 120*120*11 | 19.9 | 180*180*16 | 43.542 |
38*38*4 | 2.297 | 75*75*8 | 9.03 | 120*120*12 | 21.6 | 180*180*18 | 48.634 |
38*38*5 | 2.82 | 75*75*9 | 9.96 | 120*120*15 | 26.6 | 200*200*14 | 42.894 |
38*38*6 | 3.326 | 75*75*10 | 11.089 | 125*125*8 | 15.504 | 200*200*15 | 45.3 |
40*40*3 | 1.852 | 80*80*5 | 6.221 | 125*125*10 | 19.133 | 200*200*16 | 48.68 |
40*40*4 | 2.422 | 80*80*6 | 7.376 | 125*125*12 | 22.696 | 200*200*18 | 54.401 |
40*40*5 | 2.976 | 80*80*7 | 8.525 | 125*125*14 | 26.193 | 200*200*20 | 60.056 |
45*45*4 | 2.736 | 80*80*8 | 9.658 | 130*130*9 | 17.9 | 200*200*24 | 71.168 |
45*45*5 | 3.369 | 80*80*10 | 11.874 | 130*130*10 | 19.625 | 200*200*25 | 73.6 |
50*50*3 | 2.332 | 90*90*6 | 8.35 | 130*130*11 | 21.7 | 250*250*25 | 93.7 |
50*50*4 | 3.059 | 90*90*7 | 9.656 | 130*130*12 | 23.4 | ||
